DisplayFusion Triggers are a powerful and versatile way to automate your window management tasks. This document details the configuration options for Triggers and showcases several examples.
Every Trigger needs an Event to initiate it and at least one Action to perform. Other requirements and restrictions can be applied via the many Trigger Options and Match Conditions as detailed in the sections below.

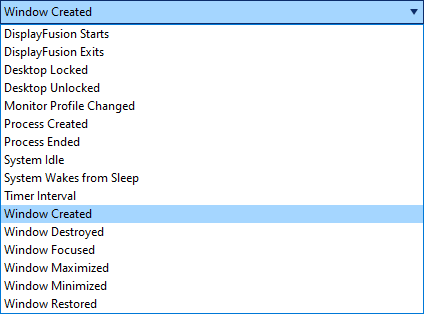

Events are what initiate the Trigger's actions. Some Event selections will require more details in the Match Conditions pane of the Edit Trigger window. Below are the current Event options:
| Event | Definition | Additional Options | Match Conditions Requirements |
|---|
| DisplayFusion Starts | This will initiate the Trigger when the DisplayFusion software runs. | Don't run this trigger when the desktop is locked | None |
| DisplayFusion Exits | This will initiate the Trigger when the DisplayFusion software is stopped. | Don't run this trigger when the desktop is locked | None |
| Desktop Locked | This will initiate the Trigger when the Windows desktop is locked. | None | None |
| Desktop Unlocked | This will initiate the Trigger when the Windows desktop is unlocked. | None | None |
| Monitor Profile Changed | This will initiate the Trigger when DisplayFusion changes its Monitor Profile. Monitor Profiles are managed from the Monitor Configuration section accessed via the Options tab of DisplayFusion Settings. | Don't run this trigger when the desktop is locked | None |
| Process Created | This will initiate the Trigger when a Process runs. | Frequency, Stop processing triggers if this one matches, Don't run this trigger when the desktop is locked, Process Filename, Process Command Line Parameters, Delay before checking match conditions | Requires a Process Filename entry. |
| Process Ended | This will initiate the Trigger when a Process stops. | Frequency, Stop processing triggers if this one matches, Don't run this trigger when the desktop is locked, Process Filename, Process Command Line Parameters, Delay before checking match conditions | Requires a Process Filename entry. |
| System Idle | This will initiate the Trigger when the system is marked as idle. DisplayFusion uses the built-in Windows idle timer for System Idle Events. | Idle Timeout, Don't run this trigger when the desktop is locked | None |
| System Wakes from Sleep | This will initiate the Trigger when the system wakes from sleep. | Don't run this trigger when the desktop is locked | None |
| Timer Interval | This will initiate the Trigger on a regular interval. | Interval (required), Don't run this trigger when the desktop is locked | None |
| Window Created | This will initiate the Trigger when a window is created. | Frequency, Stop processing triggers if this one matches, Don't run this trigger when the desktop is locked, Process Filename, Process Command Line Parameters, Window Text, Window Class, Delay before checking match conditions | Requires a Process Filename, Window Text, OR Window Class entry. |
| Window Destroyed | This will initiate the Trigger when a window is destroyed (closed). | Frequency, Stop processing triggers if this one matches, Don't run this trigger when the desktop is locked, Process Filename, Process Command Line Parameters, Window Text, Window Class, Delay before checking match conditions | Requires a Process Filename, Window Text, OR Window Class entry. |
| Window Focused | This will initiate the Trigger when a window is focused on. | Frequency, Stop processing triggers if this one matches, Don't run this trigger when the desktop is locked, Process Filename, Process Command Line Parameters, Window Text, Window Class, Delay before checking match conditions | Requires a Process Filename, Window Text, OR Window Class entry. |
| Window Maximized | This will initiate the Trigger when a window is maximized. | Frequency, Stop processing triggers if this one matches, Don't run this trigger when the desktop is locked, Process Filename, Process Command Line Parameters, Window Text, Window Class, Delay before checking match conditions | Requires a Process Filename, Window Text, OR Window Class entry. |
| Window Minimized | This will initiate the Trigger when a window is minimized. | Frequency, Stop processing triggers if this one matches, Don't run this trigger when the desktop is locked, Process Filename, Process Command Line Parameters, Window Text, Window Class, Delay before checking match conditions | Requires a Process Filename, Window Text, OR Window Class entry. |
| Window Restored | This will initiate the Trigger when a window is restored. | Frequency, Stop processing triggers if this one matches, Don't run this trigger when the desktop is locked, Process Filename, Process Command Line Parameters, Window Text, Window Class, Delay before checking match conditions | Requires a Process Filename, Window Text, OR Window Class entry. |
| Option | Definition | Dependency | Required? |
|---|
| Don't run this trigger when the desktop is locked | This Trigger will not run when the Windows desktop is in the locked state | Available for all Events except for Desktop Locked/Unlocked | No |
| Frequency | Configures how often the Trigger is run per instance (options: Always, Once-per-Process ID, Once-per-Process Name, Once-per-Window) | Limited to Process Created, Process Ended, Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | Yes (Default Always) |
| Stop Processing triggers if this one matches | When this Trigger is run, subsequent matching Triggers will not run. | Limited to Process Created, Process Ended, Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | No |
| Idle Timeout (sec) | Once the system has gone idle, the Trigger will delay this number of seconds before running any of the Trigger's actions. | Limited to System Idle Event | Yes (Requires a value of 1 or more) |
| Interval | A delay in seconds before running any of the Trigger's actions. | Limited to Timer Interval Event | Yes (Requires a value of 1 or more) |
| Condition | Definition | Dependency | Required? |
|---|
| Process Filename | Limits the Trigger to a specific application (Enable the checkbox and use the Select Application button to choose. Wildcard usage is acceptable, e.g. C:\Applications\*, or *.*) | Limited to Process Created, Process Ended, Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | No |
| Process Command Line Parameters | Limits the Trigger to Applications with specific Parameters (Enable the checkbox to use. Drop the blue target icon onto windows to auto-populate or reference the Windows Task Manager Command Line column for a running process) | Limited to Process Created, Process Ended, Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | No |
| Window Text | Limits the Trigger to Applications with specific window Titles (Enable the checkbox to use. Drop the blue target icon onto windows to auto-populate. Multiple entries can be added with a space between each. For other options, see Text Queries.) | Limited to Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | No |
| Window Class | Limits the Trigger to Applications with specific window Classes. (e.g. dialogs, settings windows, etc. Enable the checkbox to use. Drop the blue target icon onto windows to auto-populate. Multiple entries can be added with a space between each. For other options, see Text Queries.) | Limited to Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | No |
| Monitor Profile | Limits the Trigger to a specific Monitor Profile. (Enable the checkbox and select a profile to use.) | Available for all Events | No |
| Delay before checking match conditions (MS) | Sets a delay in milliseconds before checking any set Match Conditions. | Limited to Process Created, Process Ended, Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | No |
The Actions are what the Trigger performs when initiated. The Actions are performed in the order presented, but can be re-ordered by dragging them into new positions in the Actions pane.
To add Actions, click the "Add" dropdown and select from the Action options. Some options will bring up a window for additional settings. Use the Edit and Delete buttons to edit and delete Actions from the list.
| Action | Definition | Dependency | Additional Options |
|---|
| Wait | Sets a delay in milliseconds before the next Action is run (Requires a value of 1 or more). | Available for all Events | None |
| Move Window to Selected Monitor | Moves the window matching the conditions to a specific monitor. | Limited to Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | Choice of monitor (required) |
| Move Window to Mouse Cursor Monitor | Moves the window matching the conditions to the monitor where the mouse cursor is located. | Limited to Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | None |
| Move Window to Specific Size and Location | Moves the window matching the conditions to a specific location and size. (Drop the blue target icon on the window to auto-populate the size and location.) | Limited to Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | Size and Location Values (required), Maximize Window |
| Maximize Window | Maximizes the window matching the conditions. | Limited to Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | None |
| Minimize Window | Minimizes the window matching the conditions. | Limited to Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | None |
| Center Window on Monitor | Centers the window matching the conditions on its current monitor. | Limited to Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | None |
| Span Window | Maximizes the window matching the conditions across all monitors. | Limited to Window Created, Window Destroyed, Window Focused, Window Maximized, Window Minimized, Window Restored Events | None |
| Show Notification | Displays a notification. (Uses Windows notification system.) | Available for all Events | Notification text |
| Run Function | Runs a pre-defined DisplayFusion function. | Available for all Events | Function select from dropdown (Required) |
| Run Function: Add New Custom Function | Runs a user-customized DisplayFusion function. For more detail, see Custom Functions | Available for all Events | Name (Required), Function Action (Required), Action configuration (Required), HotKey Combination |
| Run Function: Add New Scripted Function | Runs a user-scripted DisplayFusion function. | Available for all Events | Language (Required), Name (Required), HotKey Combination, Description, Custom Code |
Once a Trigger is configured and saved, it will appear in the Triggers tab list. By selecting a Trigger, you can then edit, delete, enable, and disable it using the buttons at the bottom of the tab window. Triggers within the same Event grouping (e.g. Process Created) will run in the order listed, but can be re-ordered by dragging the Trigger into a new position.
